Leclerc Sectional Warp Beam, 1" or 2" Sections

Warp at once. It's especially valuable for weavers who work alone, as sectional warping can be managed comfortably by a single person.

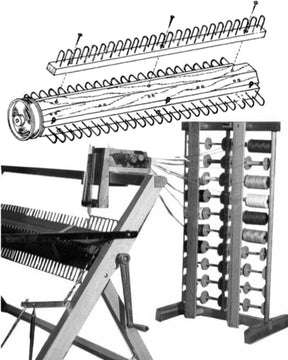

This sectional beam system consists of four rake-style sections that attach directly to your loom's plain warp beam or to a Leclerc Double Warp Beam. Available in either 1" or 2" sections, it allows warp ends to be wound evenly onto the beam from spools or small bobbins according to your desired sett.

Please note: This listing is for the sectional beam rakes only. Spools, spool rack, and steel tie-on rods are sold separately.

Can be used with other loom brands, with minimal modification. Please confirm the correct size, compatibility before ordering as this is a final sale item.

Features

• Four sectional rake pieces attach directly to the warp beam
• Available in 1" or 2" sections
• Compatible with plain warp beams and Leclerc Double Warp Beams
• Ideal for solo weavers
• Provides consistent warp tension and improved warp organization

Many weavers successfully install Leclerc 1" sectional beams on non-Leclerc looms, as few manufacturers offer 1" sectional systems. Installation may require drilling mounting holes in your existing warp beam. Many weavers find the 1" sections especially reliable and easy to use.

Compatibility & Capacity

Dorothy & Voyageur

• Clamps attach directly to the beam
• Holds approximately 5" of warp per revolution
• Dorothy looms manufactured before 1985 require removal of the lower beam bar for installation

Compact

• Holds approximately 15" of warp per revolution

Artisat & Inca

• Holds approximately 16" of warp per revolution

Fanny, Mira, Nilus, Nilus II, Colonial I, Kebec & Nilart

• Holds approximately 19" of warp per revolution

Important Notes

• The Dorothy sectional beam is available in 1" sections for 24" weaving widths only.
• Sectional rakes do not include the 5/16" steel rod used as a starting point for tying on the warp. Steel rods are available separately.
• The number of spools or bobbins required will depend on your warp sett and sectional configuration.

Overall Rake Lengths
